2x1 HDMI Switch 4K@60hz YUV420 Support HDCP2.2, HDR10
Introduction
LINK-MI LM-SW12 2x1 HDMI Switch Support 4K@60hz YUV420 Support HDCP2.2, HDR10
Features
1. 2x1 switch (4K60Hz YUV420).
2. Bandwidth upto 10.2Gbps.
3. HDCP2.2/ HDCP1.4.
4. Support audio formats: DTS, dolby, 7.1 channels, sampling rate maximum support 192KHZ.
5. Support HDR10,Dolby vision and 3D.
6. Support CEC and ARC.
Specification
| Operating Temperature Range | 0℃ to +40℃(+32℉ to +104℉) |
| Operating Humidity Range | 10 to 90%RH (No Condensation) |
| Power supply | Not need |
| Max resolution | 4k@60hz YUV 4:2:0 |
| Function | HDR 10 and Dolby vision |
| HDCP version | HDCP2.2 / HDCP1.4 |
| Control ways | Switch button |
| Distance | 1080P: input 8m max; output 8m max 4k@30hz: input 5m max;output 5m max 4k@60hz-8bit: input 3m max;output 3m max |
| Dimensions(LxWxH) | 53.2x70x22mm |
| Note: Specifications are subject to change without notice |

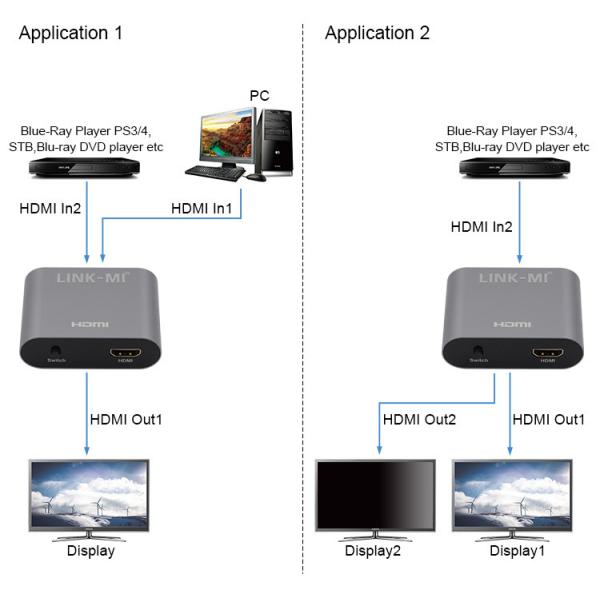

Connection Diagram
Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-SW12 2X1 HDMI Switch 4K60Hz HDR10.pdf
